2002 Progress/Work Photos
The Way It Looks 1/1/2002 Marge the Buffer Lighting Fin GM Operations & Card Case Framework Roof Arrives Roof Is Prepared	Roof Is Installed Seats & Air Big Generator Big Gen. 1 Big Gen. 2 Big Gen. 3 Structural1	Structural2 Structural3 Structural4 Parts1 Parts2 Parts3 Parts4	Parts5 Parts6 Display Projects Autronic Eye Lighting Fin Installed Miscellaneous Trim

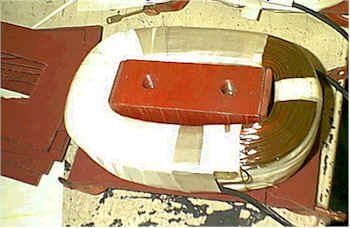

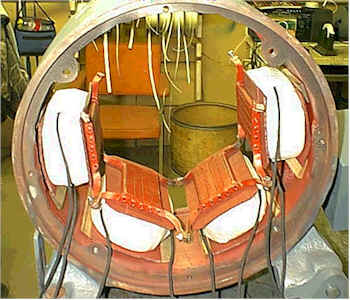

Coils installed.	Futurliner generator with new electrical components installed.

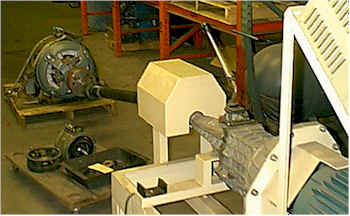

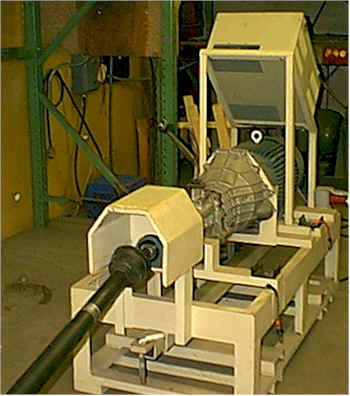

This picture shows the "setup" of the drive shaft, transmission and generator. The electric motor is used to drive the drive shaft to simulate power to the rebuilt generator. Note the shift lever used to engage the generator. The photo to the right shows the same setup but from a different angel. The little white circle in the photo is actually the lifting ring for the generator.
